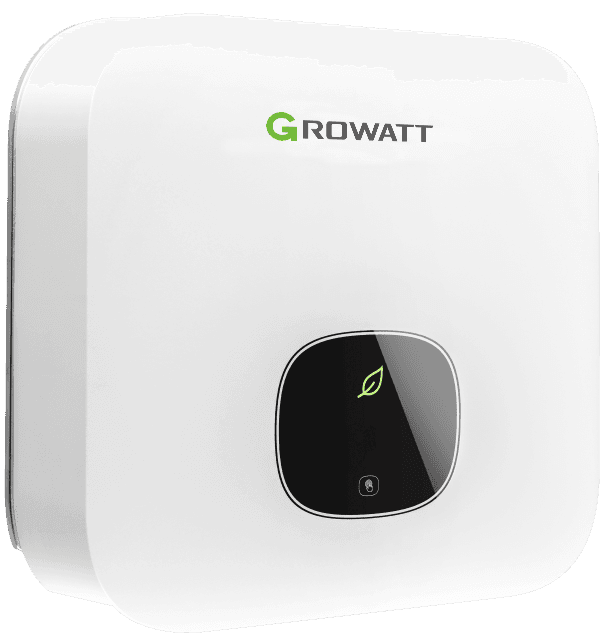

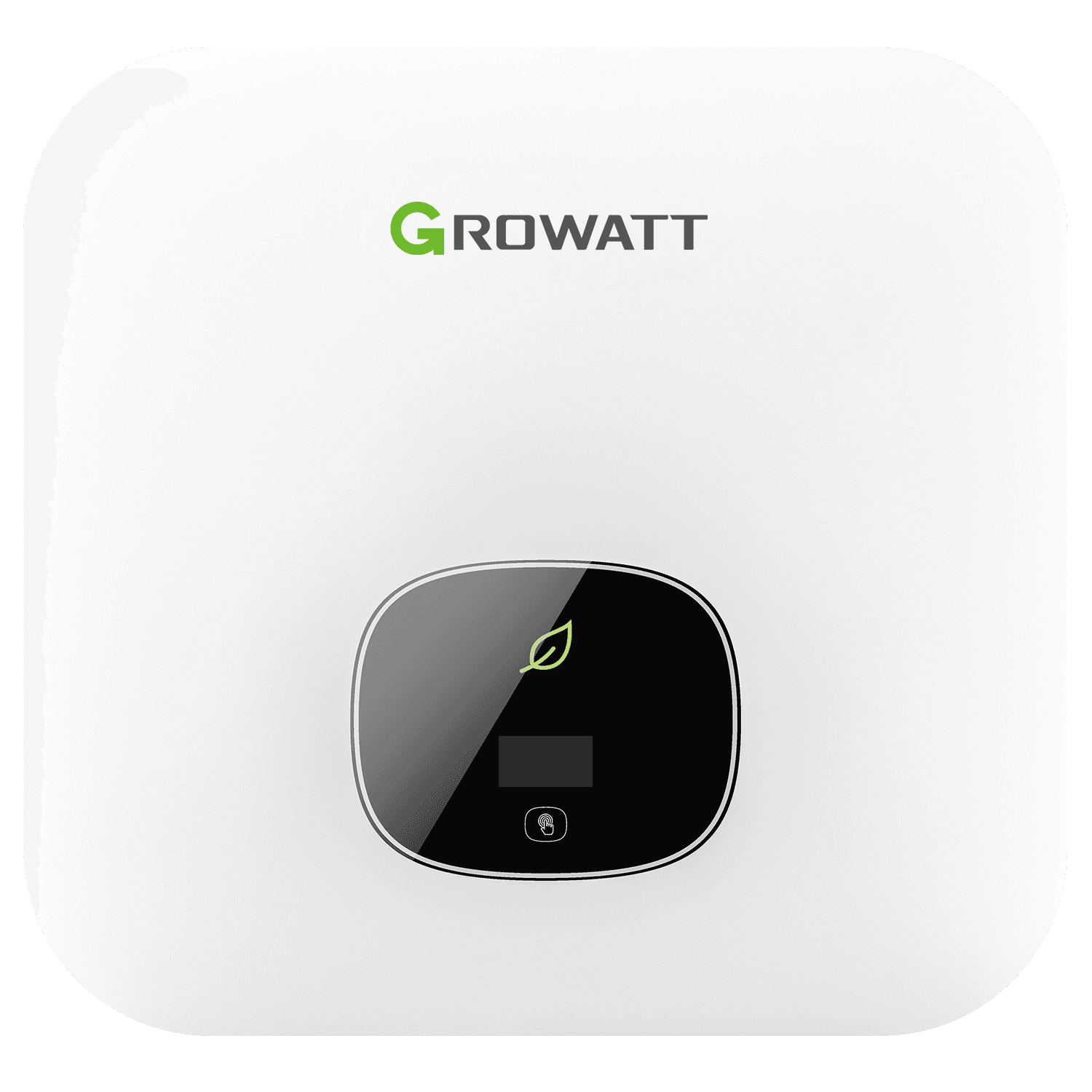

Single-Phase Hybrid Inverter Growatt MIN 5000TL-XH
Single-Phase Hybrid Inverter Growatt MIN 5000TL-XH
OVERVIEW
Single-Phase Hybrid Inverter Growatt MIN 5000TL-XH
To see the if you have a discount and shop, register or login.
Description
Growatt XH series is the latest smart residential on-grid hybrid inverter, has strong adaptability. The battery interface makes it easily extendable into a storage system in the future without extra device or retrofit cost, also supports 2 times power output.
Informations
Specifications
Brand
Growatt
Measurements - H x W x L (cm)
37.5 x 16 x 35
Gross Weight (Kg)
10.8
Number of Phases
1
Type of Compatible Battery
APX HV / ARK XH
Rated Power (W)
5000
Max. DC Voltage (V)
550
Start Voltage (V)
100
Number of MPPT
2
Number of Strings per MPPT
1
Max Current per Entry MPPT (A)
13.5
Max short-circuit current by MPPT (A)
16.9
Related documentation
Download the technical data sheet for this product to take full advantage of it
Growatt MIN 2500_6000 TL-XH_Datasheet_202302_ENGrowatt MIN 2500_6000 TL-XH_Ficha Tecnica_202302_ESGrowatt MIN 2500-6000TL-XH_Installation Manual_202201_ENGrowatt MIN 2500-6000TL-XH_Quick Guide_202201_ENGrowatt MIN 2500-6000TL-XE XH_RoHS Certificate_202007_ENGrowatt MIN 2500-6000TL-XE XH_CE EMC Certificate_202106_EN
